OpenClaw docker 部署并接入钉钉机器人

一、安装Docker

1. Windows和Mac安装 Docker Desktop

https://docs.docker.com/desktop/setup/install/windows-install/

2. Linux安装Docker Engine

https://docs.docker.com/engine/install/ubuntu/

二、部署OpenClaw CN Docker

1. 创建工作目录

mkdir -p ~/openclaw-docker
cd ~/openclaw-docker

2. 创建 .env 环境文件

cat > .env << 'EOF'
OPENCLAW_IMAGE=jiulingyun803/openclaw-cn:latest
OPENCLAW_CONFIG_DIR=./data/.openclaw
OPENCLAW_WORKSPACE_DIR=./data/clawd
OPENCLAW_GATEWAY_PORT=18789
OPENCLAW_BRIDGE_PORT=18790
OPENCLAW_GATEWAY_BIND=lan
OPENCLAW_GATEWAY_TOKEN=
CLAUDE_AI_SESSION_KEY=
CLAUDE_WEB_SESSION_KEY=
CLAUDE_WEB_COOKIE=
EOF

3. 创建 docker-compose.yml 文件

services:
  openclaw-cn-gateway:
    image: ${OPENCLAW_IMAGE:-openclaw-cn:local}
    user: node:node
    environment:
      HOME: /home/node
      TERM: xterm-256color
      OPENCLAW_GATEWAY_TOKEN: ${OPENCLAW_GATEWAY_TOKEN}
      CLAUDE_AI_SESSION_KEY: ${CLAUDE_AI_SESSION_KEY}
      CLAUDE_WEB_SESSION_KEY: ${CLAUDE_WEB_SESSION_KEY}
      CLAUDE_WEB_COOKIE: ${CLAUDE_WEB_COOKIE}
    volumes:
      - ${OPENCLAW_CONFIG_DIR:-./data/.openclaw}:/home/node/.openclaw
      - ${OPENCLAW_WORKSPACE_DIR:-./data/clawd}:/home/node/clawd
    ports:
      - "${OPENCLAW_GATEWAY_PORT:-18789}:18789"
      - "${OPENCLAW_BRIDGE_PORT:-18790}:18790"
    init: true
    restart: unless-stopped
    command:
      [
        "node",
        "dist/index.js",
        "gateway",
        "--bind",
        "lan",
        "--port",
        "${OPENCLAW_GATEWAY_PORT:-18789}",
      ]

  openclaw-cn-cli:
    image: ${OPENCLAW_IMAGE:-openclaw-cn:local}
    user: node:node
    environment:
      HOME: /home/node
      TERM: xterm-256color
      BROWSER: echo
      CLAUDE_AI_SESSION_KEY: ${CLAUDE_AI_SESSION_KEY}
      CLAUDE_WEB_SESSION_KEY: ${CLAUDE_WEB_SESSION_KEY}
      CLAUDE_WEB_COOKIE: ${CLAUDE_WEB_COOKIE}
    volumes:
      - ${OPENCLAW_CONFIG_DIR:-./data/.openclaw}:/home/node/.openclaw
      - ${OPENCLAW_WORKSPACE_DIR:-./data/clawd}:/home/node/clawd
    stdin_open: true
    tty: true
    init: true
    entrypoint: ["node", "dist/index.js"]

4. 启动容器

# 拉取最新镜像
docker compose pull

# 启动网关（后台运行）
docker compose up -d openclaw-cn-gateway

# 查看日志（可选）
docker compose logs -f openclaw-cn-gateway

5. 运行配置向导

docker compose run --rm openclaw-cn-cli onboard

配置示例：

◇  I understand this is powerful and inherently risky. Continue? → Yes
◇  Onboarding mode → Manual
◇  What do you want to set up? → Local gateway (this machine)
◇  Workspace directory → /home/node/.openclaw/workspace（默认）
◇  Model/auth provider → Skip for now（后续可配置阿里云百炼等模型）
◇  Filter models by provider → All providers
◇  Default model → Keep current（默认）
◇  Gateway port → 18789（默认，与Nginx配置一致）
◇  Gateway bind → LAN (0.0.0.0)（允许局域网访问）
◇  Gateway auth → Password（设置登录密码）
◇  Tailscale exposure → Off
◇  Gateway password → 输入自定义密码（后续登录需使用）
◇  Configure chat channels now? → No
◇  Configure skills now? → No
◇  Enable hooks? → Skip for now（空格选择后回车）

6. 访问 Web UI

http://localhost:18789/

若服务器没有GUI，用SSH做一下端口转发，然后在本地访问： http://localhost:18789/

ssh -N -f -L 18789:127.0.0.1:18789 <user>@<host>

参考文档地址：https://clawd.org.cn/install/docker-quick.html

三、配置钉钉机器人

安装DingTalk插件

进入容器安装插件

sudo docker ps
docker exec -it <容器id> /bin/bash

npm config set registry https://registry.npmmirror.com/ # 配置npm的淘宝镜像 解决安装失败的问题

openclaw-cn plugins install @moltybob/dingtalk

cd ~/.openclaw/extensions/dingtalk && npm install --omit=dev --ignore-scripts # 如果安装时依赖报错，手动装依赖

openclaw-cn plugins list | grep dingtalk # 验证插件加载

常见问题：

1. openclaw-cn not found
   使用 find / -name "*openclaw-cn*" 2>/dev/null 查找 ，然后添加进环境变量 export PATH="<openclaw-cn所在位置>:$PATH"
2. npm 安装插件依赖失败
npm config set registry https://registry.npmmirror.com/

钉钉开放平台配置

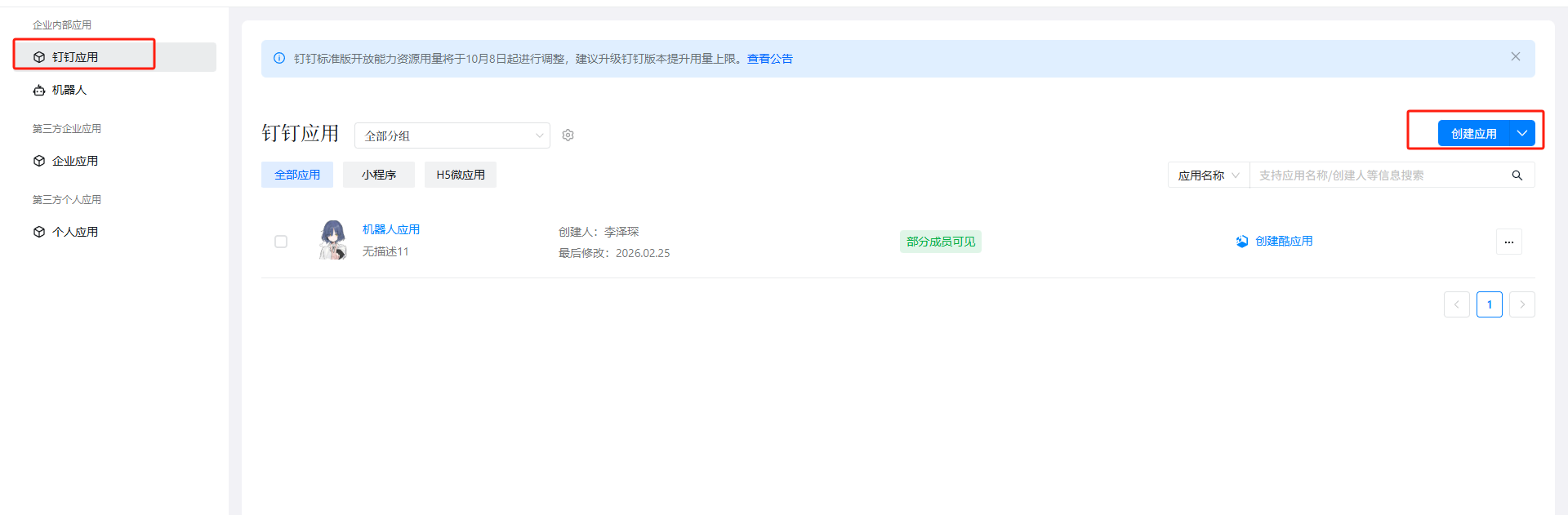

1. 创建应用

创建应用

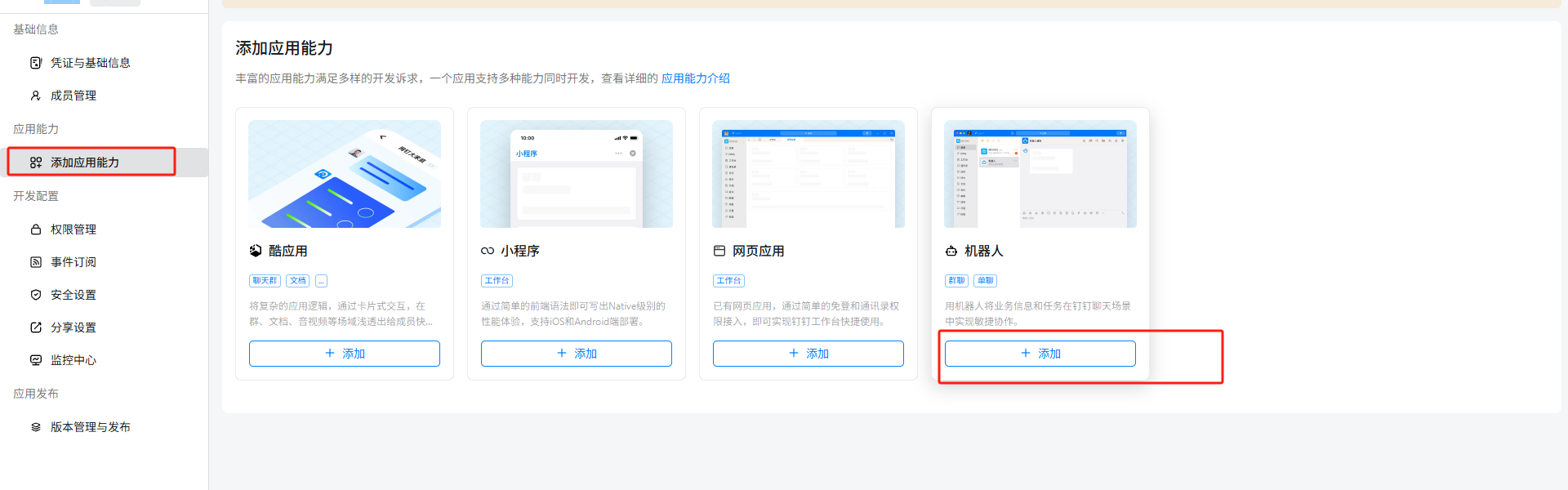

2. 添加机器人能力

添加机器人能力

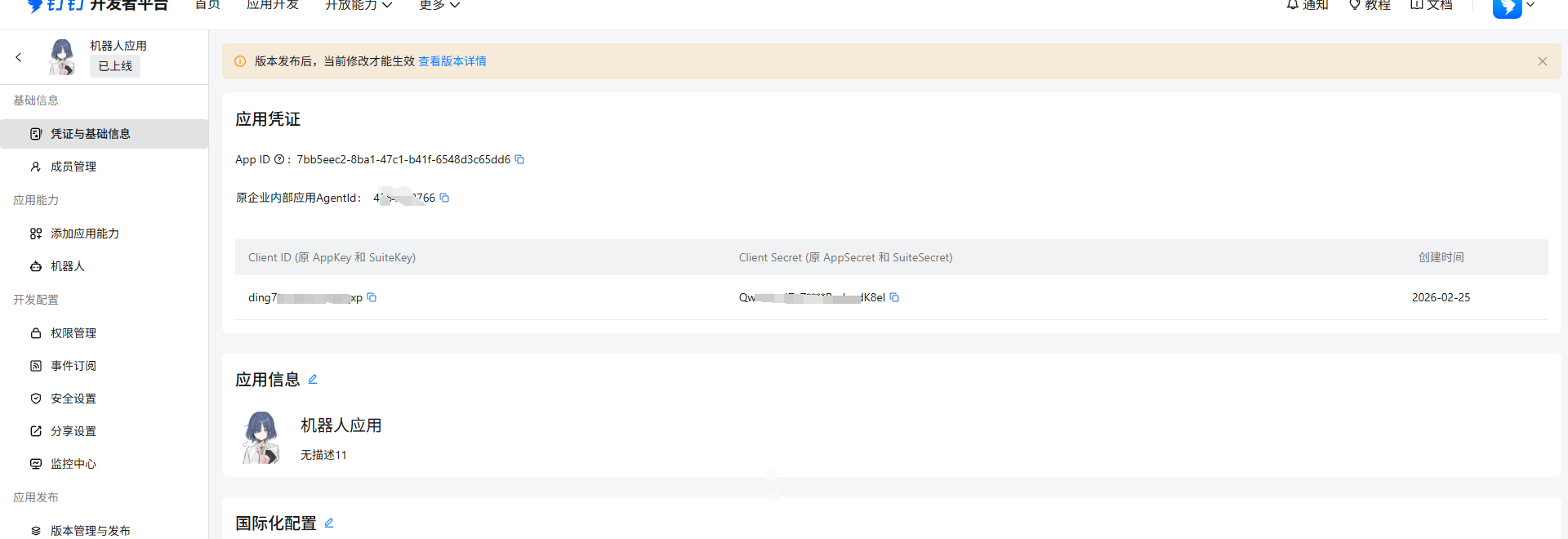

3. 获取凭证

获取凭证

4. 发布应用

配置钉钉凭证

编辑配置文件 ~/.openclaw/openclaw.json，添加

  "channels": {
    "dingtalk": {
      "enabled": true,
      "clientId": "<Client ID (原 AppKey 和 Suitekey)>",
      "clientSecret": "<Client Secret (原 AppSecret 和 SuiteSecret)>",
      "robotCode": "<robotCode>",
      "corpId": "<corpId>",
      "agentId": "<原企业内部应用Agentid>",
      "dmPolicy": "open"
    }
  },

常见问题：

1. 控制面板返回 {"success":true} 而非页面:

编辑 ~/.openclaw/extensions/dingtalk/src/monitor.ts 找到 handleDingTalkWebhookRequest 函数开头，改成：

export async function handleDingTalkWebhookRequest(
  req: import('node:http').IncomingMessage,
  res: import('node:http').ServerResponse
): Promise<boolean> {
  // Only handle POST requests to dingtalk webhook paths
  const url = req.url || '';
  const isDingTalkPath = url.includes('/dingtalk') || url.includes('/webhook');

  if (req.method !== 'POST' || !isDingTalkPath) {
    return false; // Let other handlers process non-dingtalk requests
  }

  console.log(`[dingtalk] HTTP request received: ${req.method} ${req.url}`);
  // ... 后面代码不变

2. 错误代码 1008:

修改 ~/.openclaw/devices/pending.json 文件， silent:true

四、飞书配置

参考官方文档：https://clawd.org.cn/channels/feishu.html
